40HQ Container Loading: How Many Electric Cargo 3-Wheelers Can You Fit?

Ask ten suppliers how many electric cargo three wheelers fit in a 40-foot-high cube, and the answers can be planned around 40 to 60 units. The spread is not evasion. Packing method, body size and battery handling move the number more than anything else. This guide works through the arithmetic, using Hanbang's e-tricycle for cargo 3 wheeler programme as the worked example.send inquiry

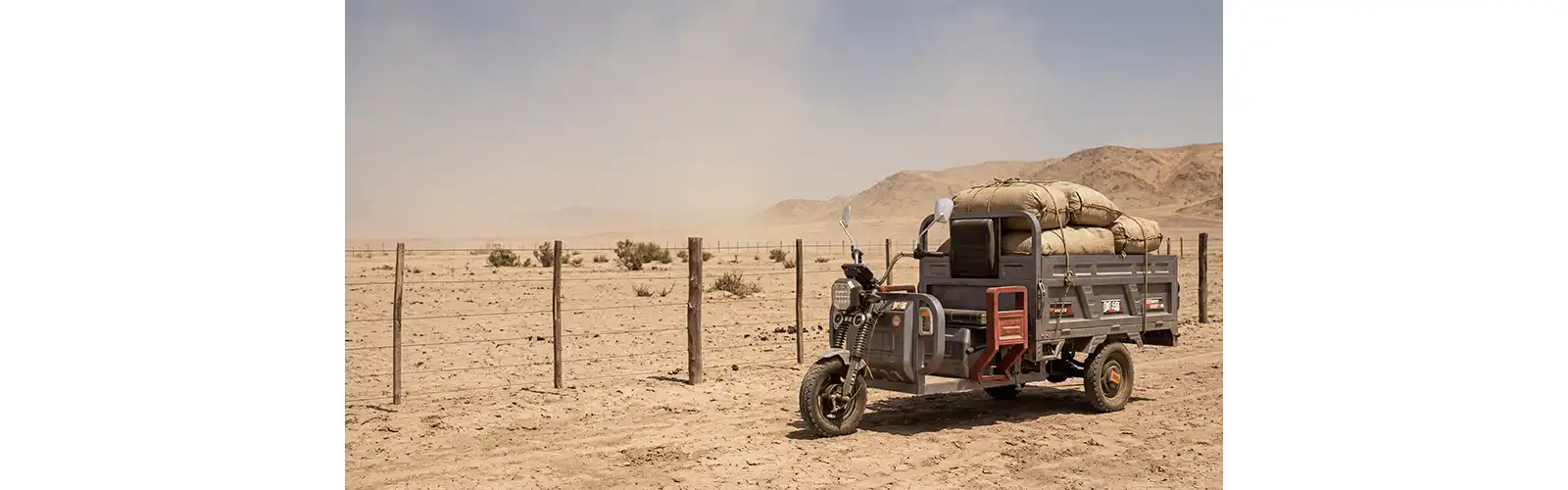

The first number a factory quotes, usually 40 to 60, describes complete vehicles rolled into the container. That figure is neither optimistic nor padded; it follows from the container's own volume and from how a three wheeler is shaped. Understanding where it comes from matters, because every later choice about kits, batteries and framing is a variation on the same arithmetic. Hanbang's e-tricycle for cargo 3 wheeler measures 3085 by 1180 by 1400 mm, and that footprint sets the floor plan.

Start With the Container's Own Numbers

A 40 foot high cube gives about 76 cubic metres of internal space, roughly 12 metres of length, 2.35 metres of width and 2.7 metres of height, with a payload allowance near 26 tonnes. Weight rarely becomes the limit. Three wheelers cube out long before they weigh out, so the constraint is geometry rather than mass, and loading plans only change when heavy packs are involved.

How 40–60 Machines Share a 40HQ

For a 40–60-unit loading target, the factory needs a detailed stuffing plan based on the specific body configuration, knockdown level, framing method and battery arrangement. The practical count should be confirmed against the final packing dimensions rather than treated as a fixed catalogue number. The frame matters as much as the count, because paint damage on arrival costs more than the space it saved.

Unloading Equipment Your Dealer May Not Own

An assembled trike needs a ramp, a forklift or two strong people per unit at the destination. Ports handle that easily, a dealer's yard in Nairobi or Surabaya often does not, and unloading damage is rarely covered by insurance. Ask for the stuffing plan and photographs before the container leaves the factory, and check who unloads at the other end.

Semi-Knocked Down: How 40–60 Units Can Be Planned

Semi-knocked-down shipping takes the same vehicle and removes the parts that waste volume. A cargo box is a hollow rectangle, and a hollow rectangle loaded onto a finished chassis carries air across an ocean. Strip the box, the wheels and the batteries, pack them flat, and the container takes roughly twice as many machines. The  e-tricycle for cargo 3 wheeler from Hanbang is quoted in both forms, assembled and knocked down, with the same production window.

What Comes Off Before Loading

Semi-knocked-down kits usually ship with the cargo box nested, the wheels stacked, mirrors and seats boxed, and the batteries crated separately. The kit form also cuts handling damage, because nothing is left protruding to be bent in transit. A 40–60-unit target can be planned when the cargo is sufficiently knocked down and the packing method is designed around the container from the start. The final number should be confirmed by the factory's stuffing plan for the selected configuration. Assembly on arrival takes a trained pair a few hours each.

CKD, Local Content and the Indonesian Case

Knocked down kits carry more than freight savings. Indonesia ties electric vehicle import relief to local content, with thresholds stepping up towards 40 per cent this decade, so kit assembly inside the country changes the economics. Hanbang ships both pack levels, packages the kits for assembly without a paint shop, and keeps production to about 25 working days.

Freight Per Unit Falls When Volume Halves

Ocean freight for a 40HQ into Europe has ranged from About UsD 1,800 to 4,500 in recent years, so the per-unit freight cost falls as more units are loaded. With 40–60 units, the freight allocation per vehicle can be spread across a much larger shipment. Duty follows the value, not the volume, at 6 per cent on CIF under heading 8711 60.

The Variables That Change the Count

Quotes diverge because three variables are set differently at the factory. Body style decides how much air travels with the vehicle, battery chemistry decides what may be packed beside it, and framing decides whether a second tier is possible. The e-tricycle for cargo 3 wheeler from Hanbang illustrates all three, since it is offered with an open bed or a closed box and with either pack. Each choice shows up as cubic metres on a loading plan.

Body Size and Shape

Cargo boxes are the deciding measurement. The 1.6 by 1.1 metre bed on the ZHANLONG 160 swallows volume in a container, while a compact 1.1 by 0.85 metre body leaves room for extra units. A closed box adds height that limits stacking, and an open bed accepts a second tier with the frames interlocked. Ask which body ships best before fixing the model.

Batteries Travel Under Their Own Rules

Lead-acid packs weigh about 90 kg each in this class and often ship dry or crated aside, while lithium packs move under dangerous goods rules with a UN 38.3 test summary and, when they travel alone, a charge level of 30 per cent or less. Either way, batteries are counted separately in the packing list. Shipping packs installed saves paperwork but costs volume.

Mixing Models, Framing and Container Choice

Mixed loads are possible, and Hanbang builds three cargo platforms on one production system, so a container can carry LETU, JIEBAO and ZHANLONG units together. Framing is the part importers forget: a proper steel rack costs a little per unit and protects resale value. For smaller first orders, the appropriate container and loading method should be confirmed with the factory before the order is finalized.

Ordering Terms That Decide What Fits

The count is settled long before a container reaches a port, because order terms fix the specification that the loading plan is drawn around. Minimum quantities, sample arrangements and document sets all influence what can be packed together. Read them before signing, since changing a body or a battery after tooling starts costs more than a container of freight. The e-tricycle for cargo 3 wheeler from Hanbang ships with the same paperwork whether it travels assembled or in kit form.

MOQ, Samples and the 2026 Price Bands

Most factories quote around 40 to 60 units for a container-based order, and a sample unit with its cost credited against the bulk order is standard practice worth confirming in writing. Price range reference for 2026: the target price band is USD 400 to 800 per unit before freight, depending on configuration, battery choice, order quantity and customization. A 40HQ shipment is the working basis for the 40–60-unit loading plan.

Documents That Travel With a Loaded Container

Each shipment needs an invoice, a packing list that names every kit part, a bill of lading and, for battery cargo, the test summary. Vehicles also travel with their own files: type approval reference, a Certificate of Conformity per VIN, and manuals. A packing list that matches the stuffing video prevents most customs arguments, so store the digital copies early.

One Container as the Working Minimum for a Dealer

For a new dealer, one 40HQ is the practical entry order, with a target loading range of 40–60 units. The models that carry most of that volume for Hanbang are the EEC ZHANLONG and the compact EEC LETU. Both are ordered as assembled units for Europe and as kits for markets that assemble locally. Dealer terms usually follow the second container, and a dealer who reorders within a season gets steadier pricing.

Conclusion

The working target is 40–60 units per 40HQ, with the exact count depending on whether the vehicles are shipped assembled, semi-knocked down or in a fuller kit configuration. Volume, not weight, sets the ceiling, and body size, battery handling and framing decide which number applies to your order. The e-tricycle for cargo 3 wheeler from Hanbang ships in any of the three, which leaves the choice where it belongs, with your routes and your unloading equipment. Count it before you sign, not after the container is stuffed.

FAQ

How many electric cargo three-wheelers fit in a 40HQ?

A 40HQ is planned around 40–60 units, with the exact number confirmed by the final loading plan and vehicle configuration.

Why do suppliers quote different numbers?

Body size, battery handling and framing change the floor plan, so quotes diverge before freight is added.

Is weight ever the limiting factor?

Rarely. A 40HQ carries close to 26 tonnes, so the final 40–60-unit plan should be checked against the actual vehicle and battery weights as well as the container payload limit.

Is knockdown shipping cheaper overall?

Freight per unit falls sharply, but you pay for local assembly. Compare both landed costs.

What is the minimum order for a first container?

One 40HQ with a target of 40–60 units, with sample costs credited against the bulk order.

Your Yard Decides the Number, Not the Catalogue
